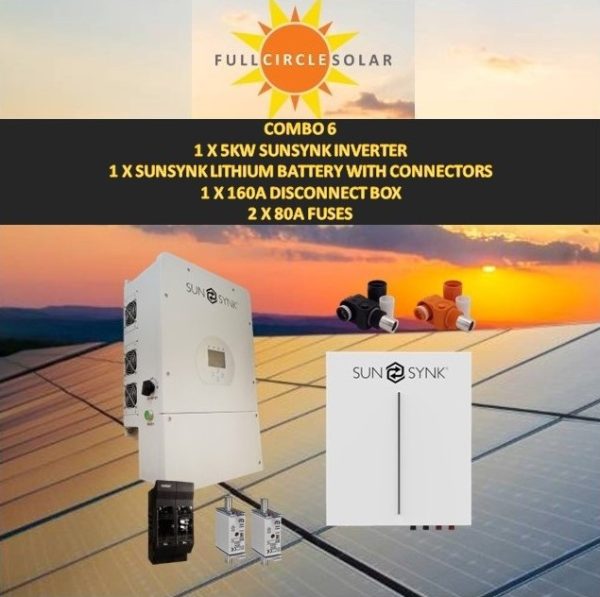

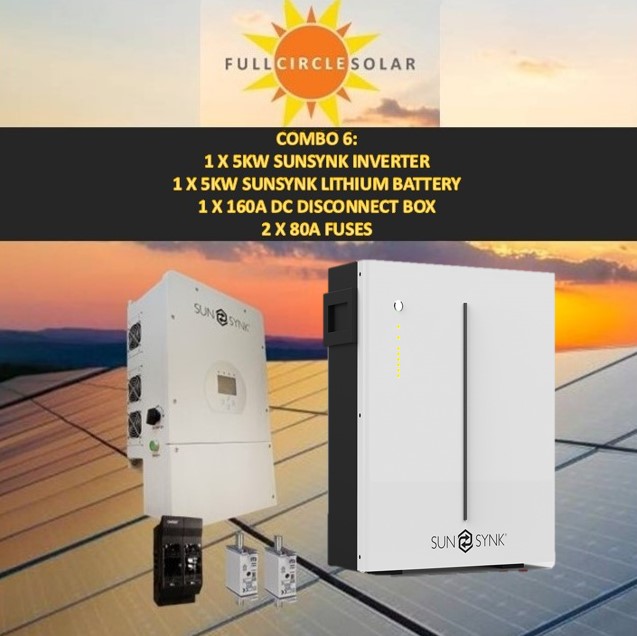

1 x Sunsynk 5kw Inverter

1 x 5.32 Sunsynk Battery

1 x Set Battery Connectors

1 x 160A DC Disconnect Box

2 X 80A DC Fuses

Solar Panels can be added at any time.

SUNSYNK-5KW

The Sunsynk Inverter is a great start to your solar journey. It can manage power from many sources such as mains grid, solar & geny then using its battery storage to supply loads when needed.

• It can be used as a UPS with no solar panels connected
• It can feed excess power back to the grid if enabled
• it can be paralleled with another unit to make a 10Kw system

Sunsynk 100AH 5.12kWh 51.2V Battery (Built with CATL)

• Built with CATL Lithium Ion cells
• Operates at a Voltage of– 51.2V
• Capacity –  5.12kWh/100Ah
• Maximum (DoD) Depth of Discharge is – 100%
• IP40
• Voltage ( Cut off)– 45.6V
• Voltage (Bulk)– 56.16V
• Charging Current – 50A (Charge I)
• Maximum recommended discharge Charging Current – 50A
• Standard Discharging I – 50A
• Size 450 x 150 x 533 @ 45Kg

FEATURES

• Supplying a pure Sine wave At 230V single phase
• Grid feed option
• Automatically restarts after AC returns
• Supply load from Solar or grid or Battery

• Battery comms or voltage settings
• Large  LCD display for  setting
• Works with Utility or generator.
• Overload / over-temperature / short-circuit protection
• Wi-Fi monitoring for remote access with 2 x MPPt’s.
• Non essential load function.

Includes Wifi Dongle with Sunsynk monitoring App.

Must be installed by a Qualified installer with a COC issued or warranty will be voided

Sunsynk 5kw Inverter Data Sheet

Sunsynk 5kw Battery Data Sheet

***EXCLUDES INSTALLATION- Supply only, we can recommend an installer
